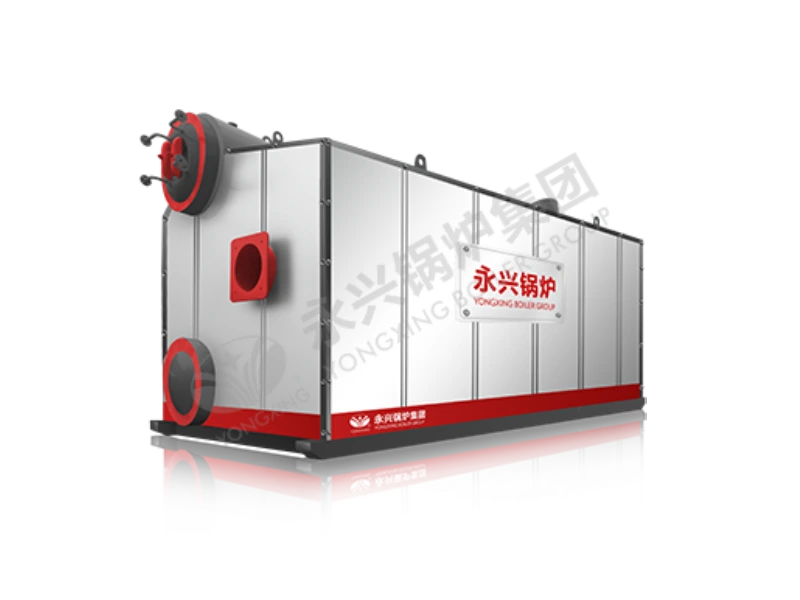

Steam Boiler

Steam boilers are commonly classified by fuel type, design structure.

Fuel type: Natural gas, LPG, oil, biomass, coal, or electric.

Design structure: Fire-tube boilers (such as WNS), water-fire tube boilers (such as DZL), and water-tube boilers (such as SZS and SZL).

Boiler selection depends on steam capacity, working pressure, fuel availability, operating conditions, and local emission requirements.

• Small and medium capacity applications (≤10 t/h): WNS or DZL boilers are commonly selected for easier maintenance and lower installation costs.
• Large capacity, high pressure, or superheated steam applications: SZS or SZL water-tube boilers are often preferred.

Boiler prices depend on capacity, fuel type, pressure rating, and auxiliary scope. Solid-fuel systems (biomass/coal) cost 40%–80% more than gas units due to heavy mechanical grates, fuel conveyors, and dust collectors.

Final quotes vary based on operating pressure, burner/grate brands, and economizer/filter configurations.

Fuel cost is usually the largest part of a boiler’s lifetime operating expense, while the initial equipment cost represents a smaller portion.

Improving efficiency through condensing systems, economizers, and heat recovery equipment can reduce fuel consumption and operating costs. The actual return depends on fuel price, operating hours, and boiler load.

Working pressure depends on process temperature, steam piping distance, and equipment requirements.

0.8–1.0 MPa: Suitable for general heating, food processing, washing, and short-distance steam supply (about 170–180°C saturated steam).

1.25–1.6 MPa: The most common industrial range for medium-distance piping, food processing, chemical processing, and sterilization applications (about 190–200°C saturated steam).

Above 1.6 MPa or superheated steam: Used for long-distance steam networks, power generation, and special high-temperature processes.

Boiler installation requires suitable foundations, ventilation, fuel supply, water treatment, electrical power, steam piping, and flue gas systems.

The specific requirements depend on boiler type, capacity, auxiliary equipment, and local regulations.

Standard packaged gas/oil boilers (1–10 t/h) usually require around 30–45 days for production.

Customized projects, high-pressure boilers, or large biomass systems normally require 60–90 days depending on design complexity and auxiliary equipment.

Packaged boilers are protected with anti-corrosion wrapping and secured for overseas transportation.

Small packaged units can usually be shipped in standard containers, while larger boilers may require open-top containers, flat racks, or special transportation depending on dimensions and weight.

A complete steam boiler system may include the boiler body, burner, control panel, feedwater pumps, water treatment system, economizer, valves, instruments, and safety protection devices.

Additional equipment such as fuel handling systems, dust removal systems, steam headers, and heat recovery units can be configured according to project requirements.

Regular maintenance includes checking water quality, monitoring water level, inspecting safety devices, cleaning heat transfer surfaces, and controlling boiler water TDS.

Bottom blowdown should be performed according to water quality conditions to remove dissolved solids and prevent scale formation.

Steam boilers are commonly used in food and beverage processing, textile dyeing, pharmaceutical production, chemical processing, paper manufacturing, animal feed production, and building material industries.
